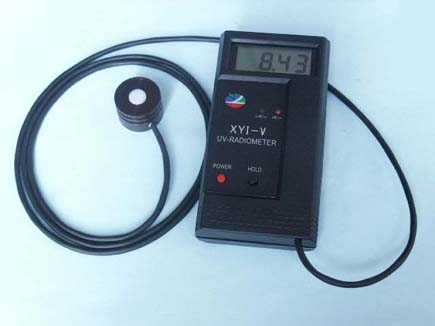

XYI-V All Digital UV-Radiometer


    The XYI-V All Digital UV-Radiometer is based on all digital integral measurement technology. It has no analogue unit, thus it is very simple to overcome the zero drift which is impossible to be avoided in current UV-Radiometer. The digital sensor has large dynamic range so that there is no range-changing error in it, moreover, it possesses strong anti-interference ability and high accuracy.
    The XYI-V All Digital UV-Radiometer contains RS232 computer interface, the calibration is done by software. It is suitable for monitoring and remote applications.
    The XYI-V All Digital UV-Radiometer software can calibrate the instrumentation, sample the data through RS232 interface and print out the results. It is a real-time measuring system and run under Windows98/2000/XP.

Application:

    For 365nm UV-light

Specification:

  • Measurement Wave: 365nm

  • Dynamic range: 0.1-100,000μW/cm2

  • Accuracy: <10%

  • Sensitivity: 0.001 μW/cm2

  • Repeatability: 0.001 μW/cm2

  • Fatigue: f5<0.5%

  • Nonlinear error: f6<1%

  • One range, no range-changing error, f7=0

  • Temperature effect: -0.1%/C

  • Refreshing frequency: 3n/s(≥0.5μW/cm2),1n/2s(<0.5μW/cm2)

  • 3-1/2 LCD display

  • RS232 computer interface and software

  • Power supply: 9V Battery

  • Size: 135L72W33H(mm)
